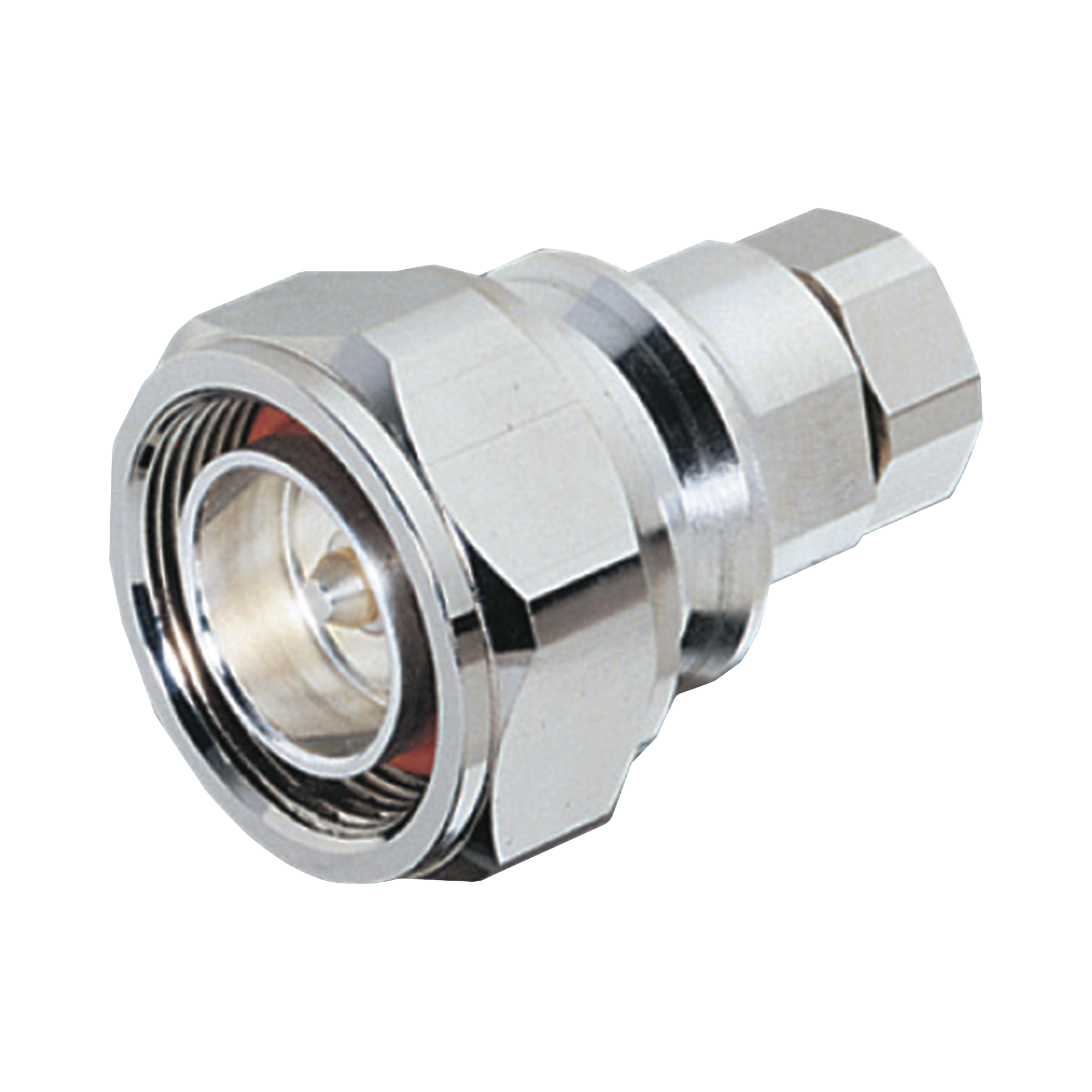

Conector DIN 7/16 Macho Para Cable FSJ4-50B

$662.82

Disponibilidad: In stock

Electrical Specifications
Connector Impedance	50 ohm
Operating Frequency Band	0 – 7500 MHz
Average Power at Frequency	1.0 kW @ 900 MHz
Cable Impedance	50 ohm
3rd Order IMD, typical	-120 dBm @ 910 MHz
3rd Order IMD Test Method	Two +43 dBm carriers
RF Operating Voltage, maximum (vrms)	884.00 V
dc Test Voltage	2500 V
Outer Contact Resistance, maximum	1.50 mOhm
Inner Contact Resistance, maximum	0.80 mOhm
Insulation Resistance, minimum	5000 MOhm
Peak Power, maximum	15.60 kW
Insertion Loss, typical	0.05 dB
Shielding Effectiveness	-110 dB

Weight	160 kg
